Product Description

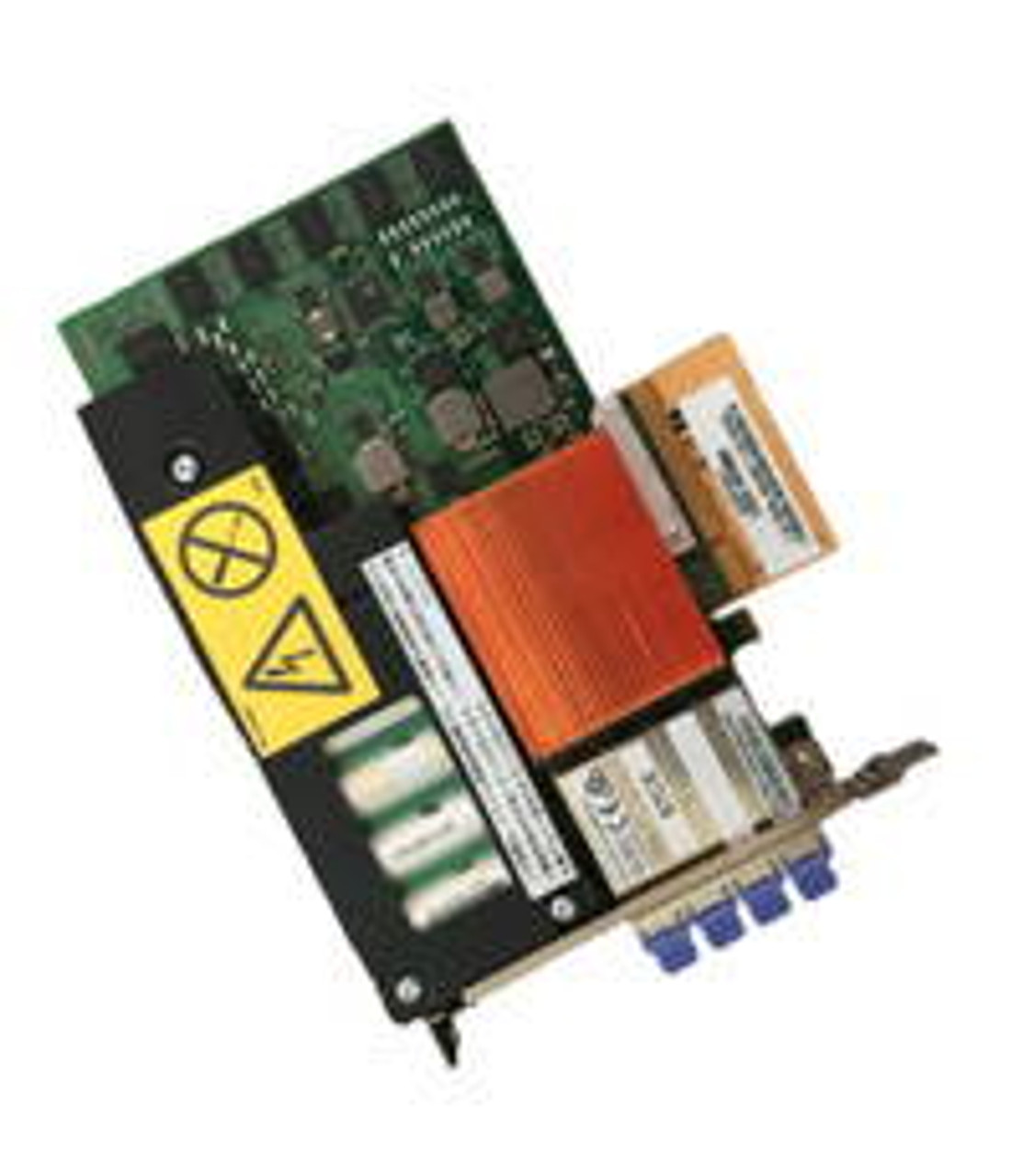

The IBM EJ14 PCIe3 12GB Cache RAID SAS Adapter (Part Number: 01DH742) is a high-performance controller for IBM Power Systems. Featuring four 6Gb/s SAS ports, this CCIN 57B1 adapter provides reliable server storage connectivity for enterprise environments.
Technical Specifications
- Part Number: 01DH742
- Feature Code: EJ14
- CCIN: 57B1
- Interface: PCIe3 x8
- Ports: 4x 6Gb/s SAS (Mini-SAS HD narrow)
- Write Cache: 12GB (compressed from 4GB)
- RAID Levels: RAID-0, 5, 6, 10, 5T2, 6T2, 10T2
- Cables: Mini-SAS HD (e.g., ECE3, customer-supplied)
- Warranty: 60-day
- Supported Systems: 8202-E4D, 8205-E6D, 8231-E1C, 8231-E1D, 8231-E2C, 8231-E2D, 8284-21A, 8284-22A, 8286-41A, 8286-42A, 9009-41A, 9009-42A, 9080-MHE, 9080-MME, 9119-MHE, 9119-MME, 9223-22H, 9223-42H
System Compatibility
The EJ14 adapter (01DH742, CCIN 57B1) requires PCIe3 x8 slots in Power7, Power8, or Power9 systems and specific operating systems for high-performance server storage operations.
- Supported Systems:
- Power7: 8202-E4D, 8205-E6D, 8231-E1C, 8231-E1D, 8231-E2C, 8231-E2D
- Power8: 8284-21A, 8284-22A, 8286-41A (S814), 8286-42A (S824), 9080-MHE, 9080-MME, 9119-MHE, 9119-MME
- Power9: 9009-41A (S914), 9009-42A (S924), 9223-22H, 9223-42H (H924)
- Operating System: IBM i V7R1+ for Power7; V7R2+ for Power8; V7R3 with TR4 or V7R4 for Power9; AIX 7.1+; Linux RHEL 7.4+, SLES 12 SP3+; VIOS.
- Adapter Requirements: Pairing required for cache redundancy.
- Restrictions:
- Compatible with PCIe3 SAS adapters only.
- Incompatible with PCIe2, Power6 systems.
- No tape/DVD support; disk drives only.
- Refurbished condition only.
