Product Description

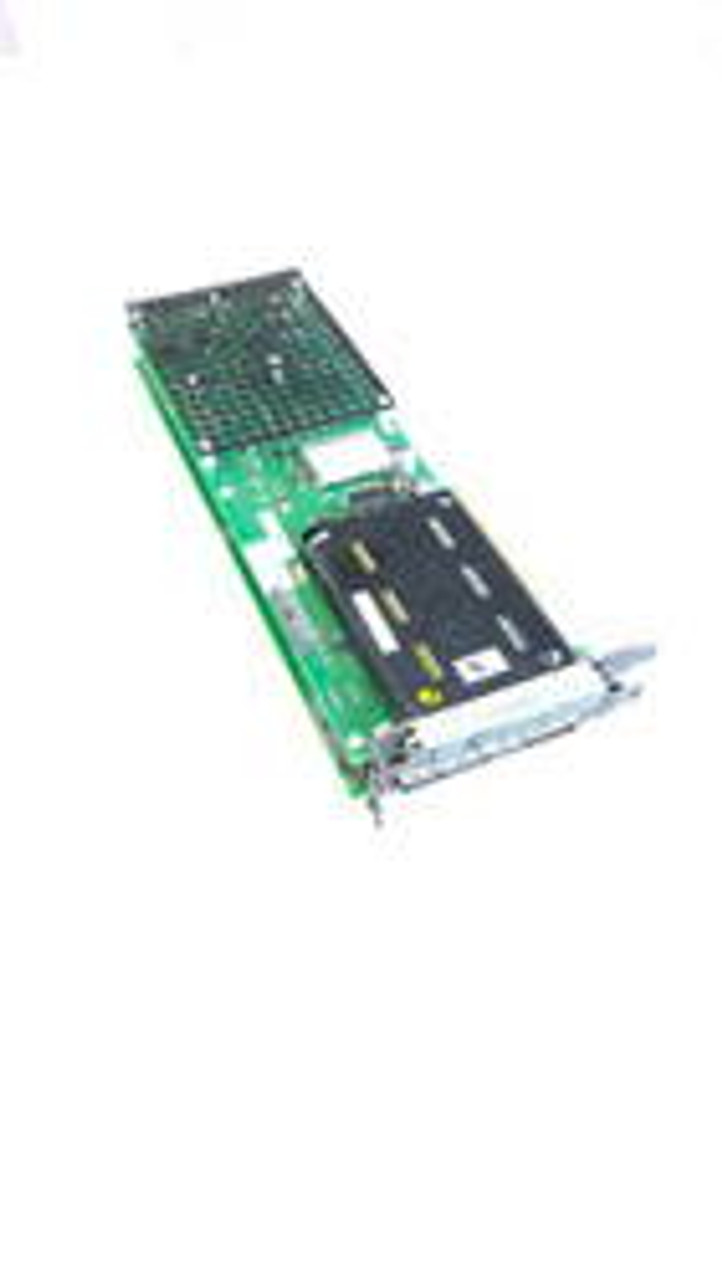

The IBM 5778 PCI-X EXP24 Controller 1.5GB No IOP (Part Number: 42R6579) is a high-performance RAID controller designed for IBM Power Systems models requiring disk expansion. It provides three Ultra320 SCSI ports for connecting to TotalStorage EXP24 disk drawers, with a 1.5GB compressed write cache and 1.6GB compressed read cache. Supporting RAID-5, RAID-6, and mirroring, it ensures reliable storage management for enterprise applications like virtualization and database management.
Key Features
- PCI-X DDR Interface: Delivers high-speed connectivity via two adjacent PCI-X slots.
- Three Ultra320 SCSI Ports: Supports disk attachment to EXP24 drawers or expansion units.
- 1.5GB Write Cache: Enhances performance with 1.5GB compressed write cache.
- 1.6GB Read Cache: Provides 1.6GB compressed read cache for fast data access.
- RAID Support: Enables RAID-5, RAID-6, and mirroring for data protection.
- No IOP Required: Operates without an Input/Output Processor for simplified configuration.
- 60-Day Warranty: Includes a 60-day warranty for reliability.
- Part Number: 42R6579, for precise system compatibility.
- CCIN: 571F/575B, custom card identification numbers.
Technical Specifications
- Part Number: 42R6579
- Feature Code: 5778
- CCIN: 571F/575B
- Interface: PCI-X DDR
- Ports: 3x Ultra320 SCSI
- Form Factor: Double-wide PCI-X adapter (requires two slots)
- Write Cache: 1.5GB compressed
- Read Cache: 1.6GB compressed
- Supported Drawers: #5786/#5787 TotalStorage EXP24, #5796 PCI-DDR 12X
- Machine Type: 8203, 8204, 8205, 9406
Compatibility
The IBM 5778 PCI-X EXP24 Controller is compatible with IBM Power Systems models, specifically 8203-E4A, 8204-E8A, 8205-E6B, 9406-MMA, and 9406-570, as verified for their PCI-X slot support. It connects to #5786/#5787 TotalStorage EXP24 Disk Drawers or #5796 PCI-DDR 12X Expansion Drawers via three Ultra320 SCSI ports, supporting IBM i, AIX, and Linux. The controller requires two adjacent PCI-X slots and does not use an IOP. In logical partition environments, both slots must be assigned to the same partition. It is not compatible with non-PCI-X slots or unsupported disk drawers. Ideal for high-performance storage expansion, it supports enterprise applications like virtualization and database management, ensuring scalability and reliability.
