Product Description

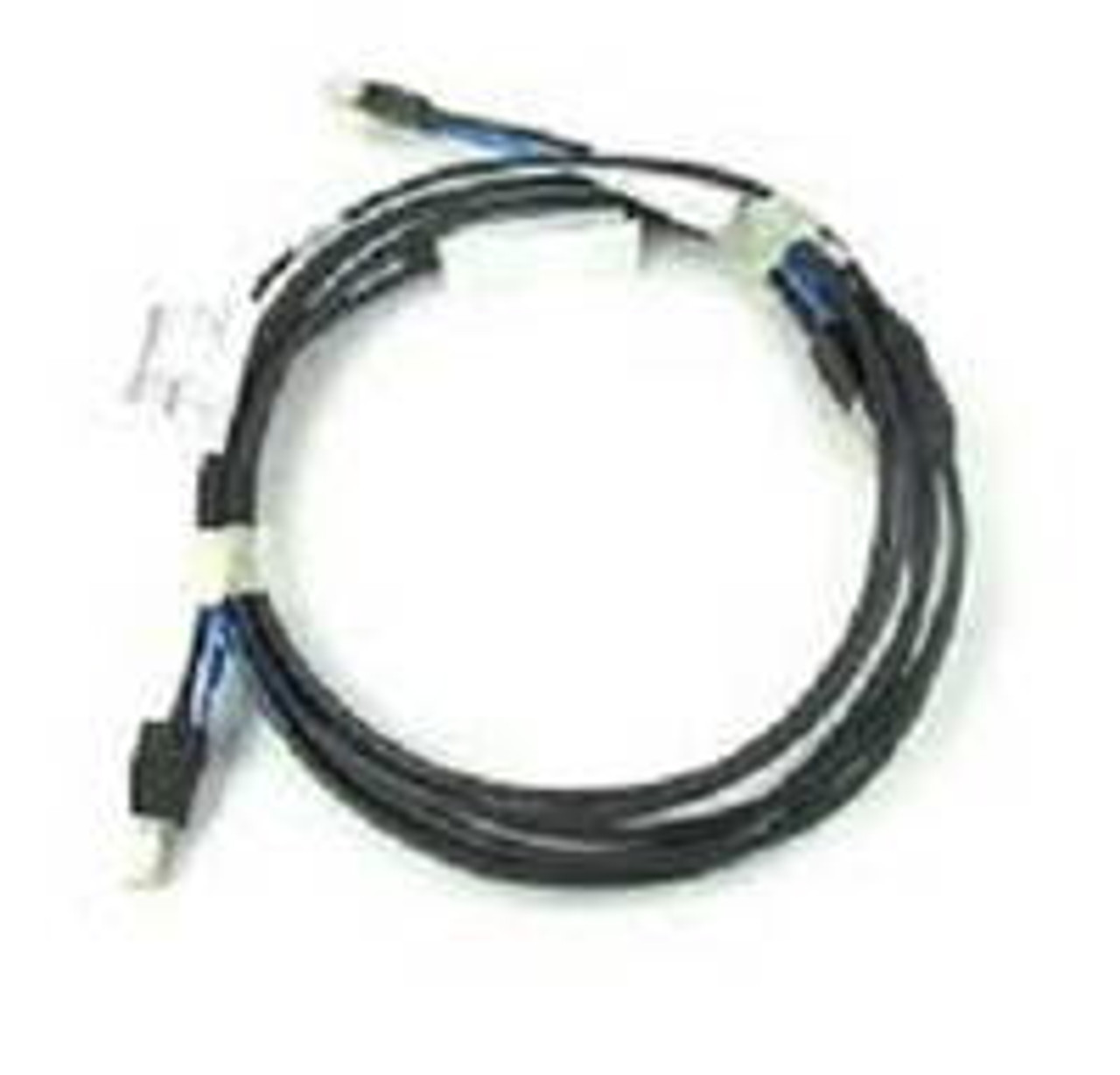

The IBM ECE0 12GB SAS High-Density Narrow Cable 12M (Feature Code: ECE0) is a high-speed connectivity solution designed for IBM Power Systems. Featuring two Mini-SAS HD connectors, this 12-meter AA12 cable connects PCIe3 SAS adapters to storage enclosures or other adapters, supporting up to 12Gb/s throughput. It enhances enterprise storage solutions for applications like virtualization and database management.
Key Features
- 12Gb/s Throughput: Supports high-speed data transfer for SAS connectivity.
- Mini-SAS HD Connectors: Dual connectors for reliable adapter-to-adapter or adapter-to-enclosure links.
- 12-Meter Length: Enables flexible configurations in large data centers.
- AA12 Configuration: Connects top connectors of PCIe3 SAS adapters (e.g., EJ0L, EJ14).
- Robust Design: Built for enterprise-grade reliability and performance.
- Storage Flexibility: Compatible with EXP24S/EXP24SX drawers and storage enclosures.
- 60-Day Warranty: Includes a 60-day warranty for reliability.
- Feature Code: ECE0, for precise system compatibility.
- High-Density Narrow: Optimized for modern SAS adapter connections.
Technical Specifications
- Feature Code: ECE0
- Part Number: Not specified
- CCIN: Not specified
- Length: 12 meters
- Connectors: 2x Mini-SAS HD (High-Density Narrow)
- Throughput: Up to 12Gb/s
- Type: AA12 (adapter-to-adapter)
- Supported Systems: 8286-41A, 8286-42A, 8408-44E, 8408-E8E, 9080-MHE, 9080-MME, 9119-MHE, 9119-MME, 9009-41A, 9009-42A, 9009-22A, 9008-22L, 9040-MR9, 9080-M9S, 9223-22H, 9223-42H
Compatibility
The IBM ECE0 12GB SAS High-Density Narrow Cable 12M is designed for IBM Power Systems, connecting PCIe3 SAS adapters to storage enclosures or other adapters for high-speed storage solutions in applications like virtualization and database management. Below are the compatibility details:
- Supported Models:
- Power8: 8286-41A (Power S814), 8286-42A (Power S824), 8408-44E, 8408-E8E (Power E850C), 9080-MHE, 9080-MME, 9119-MHE, 9119-MME (Power E870, E880)
- Power9: 9009-41A (Power S914), 9009-42A (Power S924), 9009-22A (Power S922), 9008-22L (Power L922), 9040-MR9 (Power E950), 9080-M9S (Power E980), 9223-22H (Power H922), 9223-42H (Power H924)
- Operating System: IBM i V7R1 with TR7 (SF99707 Level 7, Fix C3298710), V6.1.1 with RS610-10 OS, RS611-M LIC, Fix C3312610 for Power8; V7R3 or later for Power9; AIX 7.1 or later; Linux RHEL 6.4, SUSE 11 SP3, or later.
- SAS Adapters: Requires PCIe3 SAS adapters (e.g., EJ0L, EJ14, EJ0M, EL59, EL65, EL3B).
- Restrictions:
- AA12 cable for adapter-to-adapter or adapter-to-enclosure connections; not compatible with non-Mini-SAS HD interfaces.
- Supported in system units or EXP24S (#5887)/EXP24SX (#ESLS) drawers; not compatible with 5802/5803 drawers.
- Not compatible with Power7, Power10, or PCIe2 adapters for full 12Gb/s performance.
- Requires compatible SAS enclosures or adapters for operation.
