Product Description

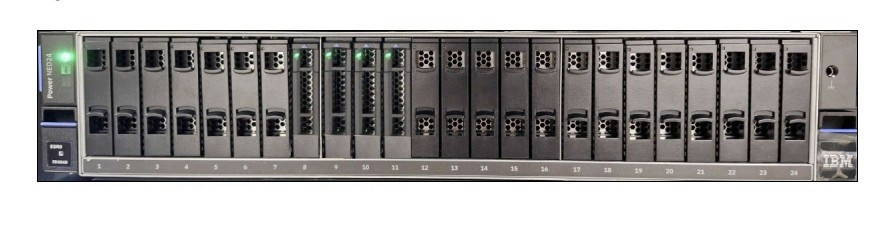

The IBM ESR0 NED24 NVMe Expansion Drawer (Feature Code: ESR0) is a high-performance 2U rack-mount NVMe expansion enclosure designed for IBM Power Systems. This drawer supports up to 24 NVMe U.2 SSDs (15mm height) with PCIe Gen4 connectivity, providing massive scalable storage capacity and high IOPS for demanding IBM i workloads. It enables flexible, hot-plug NVMe drive additions in compatible Power Systems environments, ideal for large databases, virtualization, and high-throughput applications.
Key Features
- 24 NVMe U.2 Drive Bays: Supports up to 24 x 15mm NVMe SSDs for high-density storage expansion.
- PCIe Gen4 Connectivity: Delivers superior bandwidth and low latency via high-speed PCIe links to the host system.
- Hot-Plug Support: Allows drive addition/replacement without system downtime.
- Redundant Power & Cooling: Dual power supplies and fans for enterprise-grade reliability.
- IBM Power Optimized: Fully integrated and qualified for IBM Power Systems running IBM i.
- Scalable Architecture: Supports mixing of enterprise and mainstream NVMe SSDs (e.g., ES5x, ECTB series).
- 60-Day Warranty: Includes a 60-day warranty for reliability.
- Feature Code: ESR0
Technical Specifications
- Feature Code: ESR0
- Form Factor: 2U rack-mount drawer
- Drive Bays: 24 x NVMe U.2 (15mm)
- Interface: PCIe Gen4 (via external PCIe cables to host CEC)
- Power Supplies: Dual redundant hot-swap
- Cooling: Redundant hot-swap fans
- Maximum Capacity: Up to 368.4 TB+ (with 15.3TB+ drives) depending on populated SSDs
- Installation: Requires compatible PCIe slot adapters and cables in host system
- Supported Systems: Power11, Power10, models and select Power9 systems with NVMe expansion support
Technical Specifications the Following U.2 NVMe Drives are Supported in the NED24 NVMe Expansion Drawer:
- IBM ES5B - Enterprise 800GB SSD PCIe4 NVMe U.2 module for IBM i
- IBM ES5A - Enterprise 800GB SSD PCIe4 NVMe U.2 module for AIX/Linux
- IBM ES5C - Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
- IBM ES5D - Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module for IBM i
- IBM ES5E - Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
- IBM ES5F - Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for IBM i
- IBM ES5G - Enterprise 6.4 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
- IBM ES5H - Enterprise 6.4 TB SSD PCIe4 NVMe U.2 module for IBM i
- IBM ES4B - Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
- IBM ES4C - Enterprise 1.6 TB SSD PCIe4 NVMe U.2 module for IBM i
- IBM ES4D - Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
- IBM ES4E - Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for IBM i
- IBM ES4F - Enterprise 6.4 TB SSD PCIe4 NVMe U.2 module for AIX/Linux
- IBM ES4G - Enterprise 6.4 TB SSD PCIe4 NVMe U.2 module for IBM i
- IBM ECT9 - 15.3 TB Mainstream NVMe U.2 SSD 4k for AIX/Linux
- IBM ECTB - 15.3 TB Mainstream NVMe U.2 SSD 4k for IBM i
Compatibility The IBM ESR0 NED24 NVMe Expansion Drawer is compatible with IBM Power Systems running IBM i, including Power11 models 9824-22A (Power S1122) and 9824-42A (Power S1124). Power10 models such as 9105-41B (Power S1014), 9105-22A (Power S1022), 9105-22B (Power S1022s), 9105-42A (Power S1024), 9043-MRX (E1050), and 9080-HEX (E1080). It requires appropriate PCIe NVMe adapter cards (e.g., feature codes for external NVMe attach) and cabling in the host system. The drawer supports IBM i native NVMe devices (e.g., ES5x, ES4x, ECTB series SSDs) with mirroring required for load source/boot drives. Not compatible with systems lacking external NVMe expansion support or non-PCIe Gen4 configurations.
