Product Description

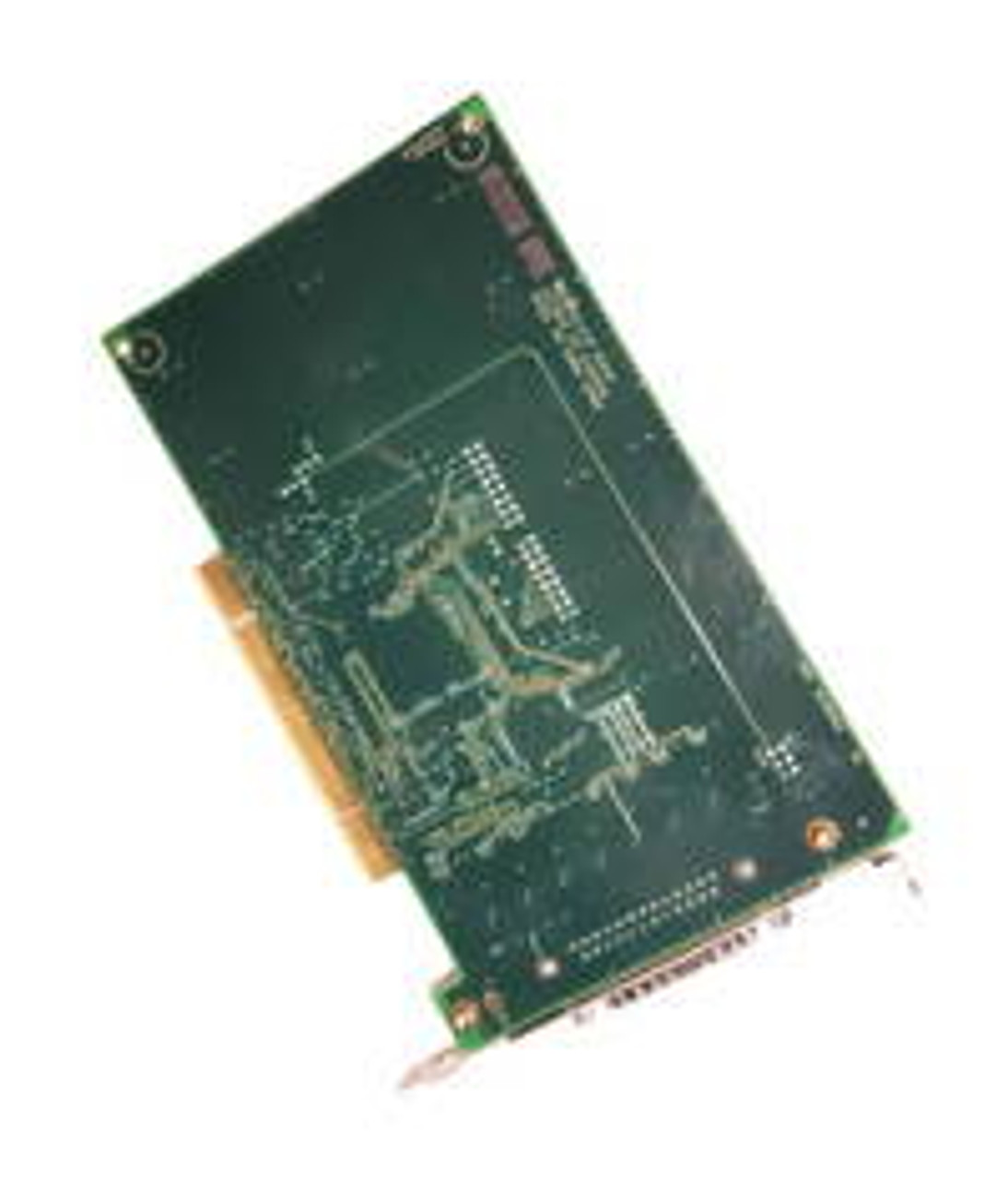

The IBM 4746 PCI Twinaxial Workstation IOA (Feature Code: 4746) is a high-performance adapter for IBM iSeries Systems. Supporting up to 40 twinaxial devices, this CCIN 2746 adapter ensures reliable server connectivity for enterprises.
Technical Specifications
- Feature Code: 4746
- Part Number: Not specified
- CCIN: 2746
- Interface: PCI
- Devices Supported: Up to 40 active 5250-type displays/printers
- Ports: 8-port breakout box (20-foot cable included)
- Throughput: 2 Mbps (Optimized Mode 2)
- Slot Requirement: One PCI slot
- Warranty: 60-day
- Supported Systems: 270, 810, 820, 825, 830, 840, 870, 890, SB2, SB3
System Compatibility
The 4746 IOA (4746, CCIN 2746) requires one PCI slot in iSeries systems and IBM i for high-performance server connectivity operations.
- Supported Systems:
- iSeries: 270, 810, 820, 825, 830, 840, 870, 890, SB2, SB3
- Operating System: IBM i V5R2 or earlier.
- Slot Requirements: One PCI slot; not supported in CEC.
- Restrictions:
- Supports 40 active devices (56 attached).
- Incompatible with AIX, Linux, Power7+.
- System maximum of 50 under IBM i.
- Refurbished condition only.
