Product Description

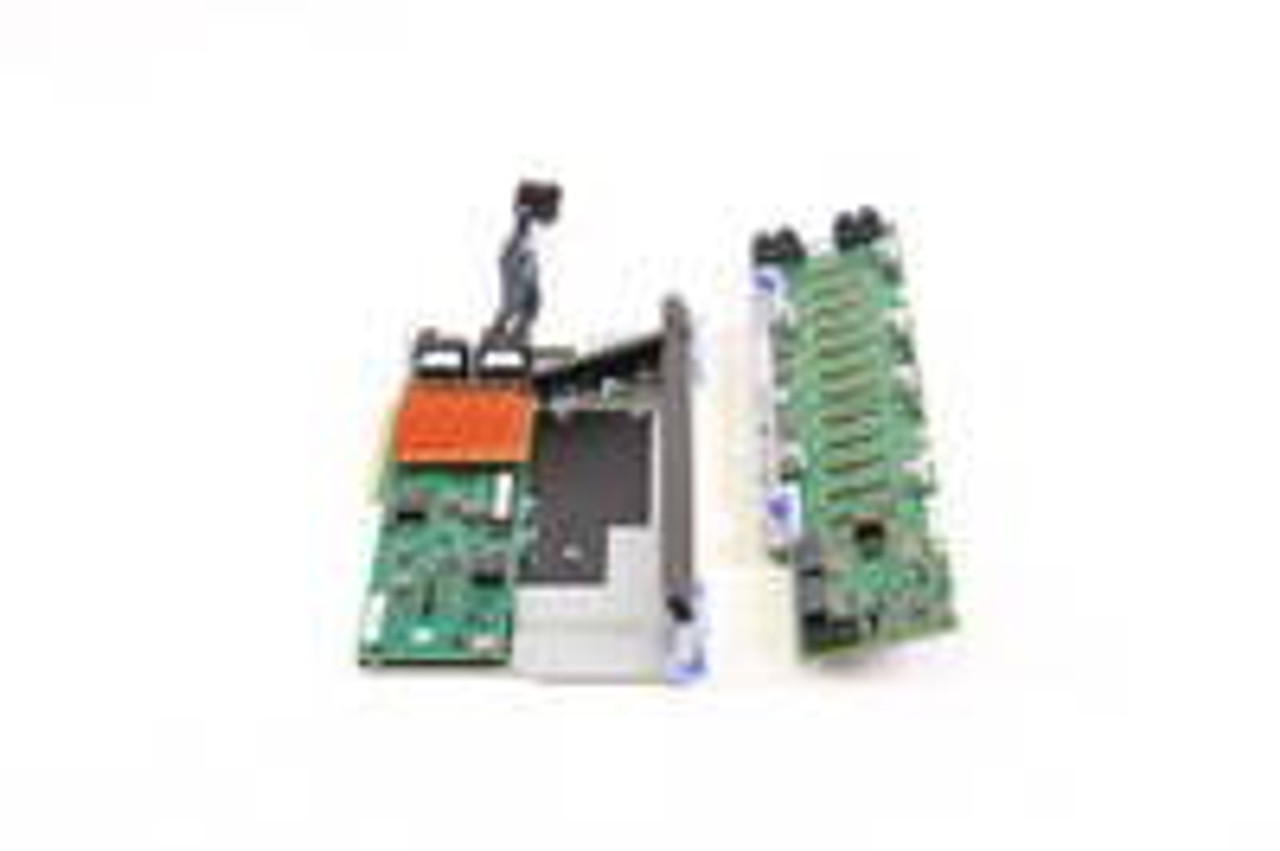

The IBM EJ0N Storage Backplane with 12 SFF-3 Bays (Part Number: 00MH906) is a high-performance solution for IBM Power8 Systems. Featuring an integrated 6Gb SAS RAID controller, this CCIN 57D7 backplane provides reliable storage connectivity for enterprise environments.
Technical Specifications
- Part Number: 00MH906
- Feature Code: EJ0N
- CCIN: 57D7
- Bays: 12 SFF-3 SAS, 1 slimline DVD (SATA)
- Controller: Integrated 6Gb SAS RAID
- RAID Levels: RAID-0, 5, 6, 10
- Split Backplane: Supported with EJ0S
- Write Cache: None
- Warranty: 60-day
- Supported Systems: 8286-41A, 8286-42A
System Compatibility
The EJ0N backplane (00MH906, CCIN 57D7) requires SFF-3 bays in Power8 system units and specific operating systems for high-performance storage operations.
- Supported Systems:
- Power8: 8286-41A (S814), 8286-42A (S824)
- Operating System: IBM i V7R2 with TR4 or V7R3; AIX 7.1+; Linux RHEL 7.4+, SLES 12 SP3+; VIOS.
- Drive Requirements: 5xx or 4k byte sectors; no mixing in RAID.
- Restrictions:
- Fits SFF-3 bays in Power8 system units only.
- No write cache; use EJ0P.
- Split backplane with EJ0S.
- Refurbished condition only.
