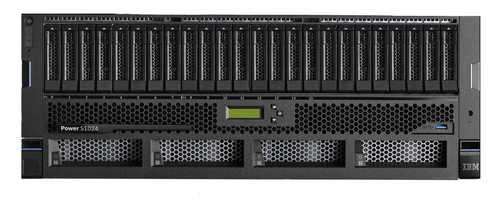

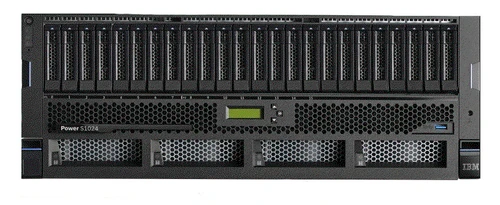

    • IBM 9105 42A S1024 iSeries Power 10 Servers

    The IBM Power S1024 (9105-42A) server is a high-performance, flexible two-socket, 4U system that provides massive scalability and flexibility. It delivers extreme density in an energy-efficient design with best-in-class reliability and resiliency. The IBM Power S1024 server brings a secure environment that balances mission- critical traditional workloads and modernization applications to deliver a frictionless hybrid cloud experience.

    Power S1024 9105-42A

    • Up to two dual-chip processor modules per system server:
      • IBM EPGM 3.40--4.0 GHz, 12-core Power10 processor
    • Two dual-chip processor modules per system server:
      • IBM EPGC 3.10--4.0 GHz, 16-core Power10 processor
      • IBM EPGD 2.75--3.90 GHz, 24-core Power10 processor
    • MMA feature helps to perform in-core AI inferencing and machine learning where data resides.
    • Processor core activation features for Pools 2.0 available on a per-core basis:
      • IBM EUBX 1 core Base Processor Activation Pools 2.0 for #EPGM - any OS
      • IBM EUCK 1 core Base Processor Activation Pools 2.0 for #EPGC - any OS
      • IBM EUCS 1 core Base Processor Activation Pools 2.0 for #EPGD - any OS
    • CUoD Static core activation features available on a per-core basis:
      • IBM EPFM One CUoD Static Processor Core Activation for #EPGM
      • IBM EPFC One CUoD Static Processor Core Activation for #EPGC
      • IBM EPFD One CUoD Static Processor Core Activation for #EPGD
    • Up to 8 TB of system memory distributed across 32 DDIMM slots per system server. DDIMMs are extremely high-performance, high- reliability, intelligent, and dynamic random access memory (DRAM) devices.
    • DDR4 DDIMM memory cards:
      • IBM EM6N 32 GB (2 x 16 GB)
      • IBM EM6W 64 GB (2 x 32 GB)
      • IBM EM6X 128 GB (2 x 64 GB)
      • IBM EM6U 256 GB (2 x 128 GB)
      • IBM EM78 512 GB (2 x 256 GB)
    • DDR5 DDIMM memory cards:
      • IBM EMFA 64GB (2 x 32)
      • IBM EMFB 128GB (2 x 32)
      • IBM EMFD 256GB (2 x 32)
      • IBM EMFE 512GB (2 x 32)
      Note: DDR5 Memory DDIMMs requires FW1060.10, or later
    • AMM for Hypervisor is available as an option to enhance resilience by mirroring critical memory used by the PowerVM hypervisor.
    • PCIe slots with two processors:
      • Four x16 Gen4 or x8 Gen5 full-height, half-length slots.
      • Four x8 Gen5 full-height, half-length slots (with x16 connectors).
      • Two x8 Gen4 full-height, half-length slots (with x16 connectors).
      • All PCIe slots are concurrently maintainable.
    • Integrated:
      • System management using an Enterprise Baseboard Management Controller (eBMC).
      • EnergyScale technology.
      • Redundant hot-swap cooling.
      • Redundant hot-swap AC power supplies.
      • Up to two HMCs with 1 GbE RJ45 ports.
      • One rear USB 3.0 port.
      • One front USB 3.0 port.
      • One internal USB 3.0 Port for RDX.
      • Nineteen-inch rack-mounting hardware (4U).
    • Optional PCIe I/O expansion drawer with PCIe slots:
      • Up to two drawers (IBM EMX0).
      • Each I/O drawer holds one or two six-slot PCIe fanout modules (IBM EMXH).
      • Each fanout module attaches to the system node through a PCIe optical or copper cable adapter (IBM EJ2A).

    Benefits

    • Cost-Effective Performance: One active core offers essential processing power at a lower cost.
    • Advanced Security: Hardware encryption ensures data protection without performance loss.
    • Scalability: Upgrade cores, memory, and storage as your business grows.

    Ideal Use Cases

    Perfect for small enterprises, branch offices, or development environments needing reliable, secure processing.

    FAQs

    • Can I activate more cores later? Yes, up to four cores can be activated.
    • What operating systems are supported? IBM i, AIX, Linux, and VIOS.

    Contact Us

    Ready to deploy the IBM S1024 9105-42A? Contact Data Tech Computer Services at 770-772-0200 or info@DataTechComputer.com to discuss this configuration or further customization.
