Product Description

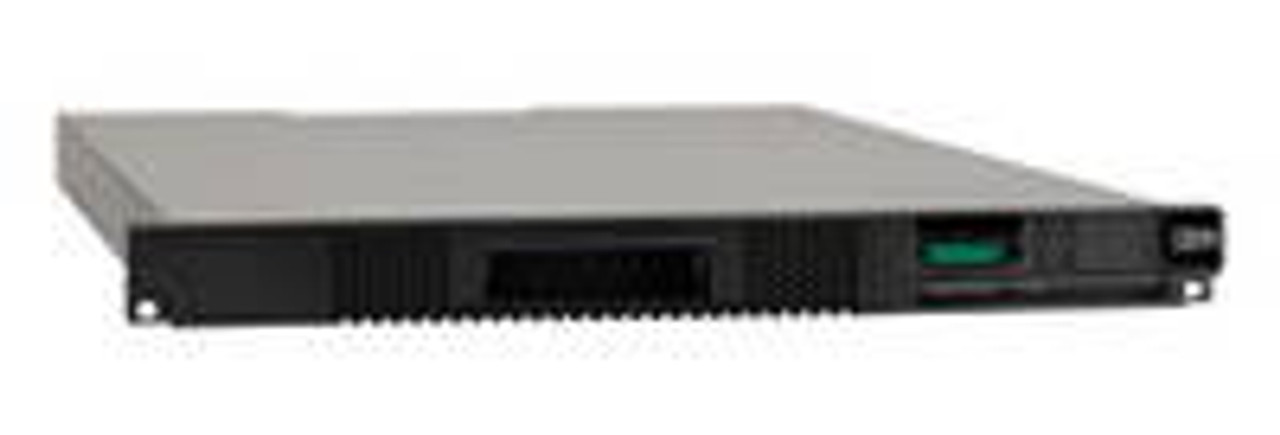

The IBM 3572 TS2900 Tape Autoloader Model S8H is a rack-mountable or deskside unit that contains a single IBM LTO Ultrium 8 Half-High SAS Tape Drive.
The IBM 3572-S8H TS2900 Tape Autoloader provides an efficient solution for data backup and archiving needs. This compact unit integrates a single LTO Ultrium 8 half-high SAS drive within a 1U form factor, making it suitable for both rack-mounted and desktop environments. Designed for entry-level applications, it combines high capacity, strong performance, and dependable reliability to handle growing data storage demands.
With support for nine cartridges, the TS2900 achieves up to 108 TB of native storage capacity, expanding to 270 TB with 2.5:1 compression. It delivers data transfer rates of up to 300 MB/s native and 750 MB/s compressed, ensuring quick and effective backup operations. The autoloader includes a standard bar code reader for seamless sequential or random access modes, enhancing operational flexibility.
Remote management is facilitated through a user-friendly web interface, allowing administrators to monitor and control the device from afar. Optional accessories, such as rack mount kits and additional magazines, further customize the setup. This tape autoloader adheres to LTO specifications, supporting media partitioning and self-describing tapes for advanced data handling.
Security features include optional encryption capabilities to protect sensitive information. The TS2900 comes with a 60-day warranty, providing assurance in its quality and performance.
Key Features
- Single LTO Ultrium 8 half-high SAS tape drive for robust performance.
- Nine cartridge slots with a single I/O station in a removable magazine.
- Standard bar code reader enabling sequential or random access operations.
- Web-based remote management for convenient administration.
- 6 Gbps SAS interface for fast connectivity.
- Backward compatibility: Reads and writes LTO Ultrium 7 media.
- Support for encryption to secure data.
- Compact 1U design ideal for space-constrained setups.
- High-density storage with up to 300 MB/s native data transfer rate.
Specifications
| Attribute | Specification |
|---|---|
| Form Factor | 1U rack mount or standalone |
| Drive Technology | LTO Ultrium 8 half-high SAS drive |
| Number of Drives | 1 |
| Number of Cartridge Slots | 9 |
| Cartridge Capacity (Native / Compressed) | 12 TB / 30 TB (2.5:1 compression) |
| Total Backup Capacity (Native / Compressed) | Up to 108 TB / Up to 270 TB (2.5:1 compression) |
| Data Transfer Rate (Native / Compressed) | Up to 300 MB/s / Up to 750 MB/s (2.5:1 compression) |
| Interface | 6 Gbps SAS |
| Management | Web-based GUI, operator panel |
| Dimensions (H x W x D) | 1.7 in. x 19.0 in. x 33.5 in. |
| Weight | 28.7 lb |
| Warranty | 60 days |
Compatibility
The IBM TS2900 Tape Autoloader is compatible with a range of operating systems and server platforms:
- Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), IBM AIX 7.1 or later, IBM i 7.1 or later.
- Servers: IBM Power Systems, IBM System x, Intel-based servers, and other open-system platforms.
For complete interoperability details, consult the System Storage Interoperation Center (SSIC).
