Product Description

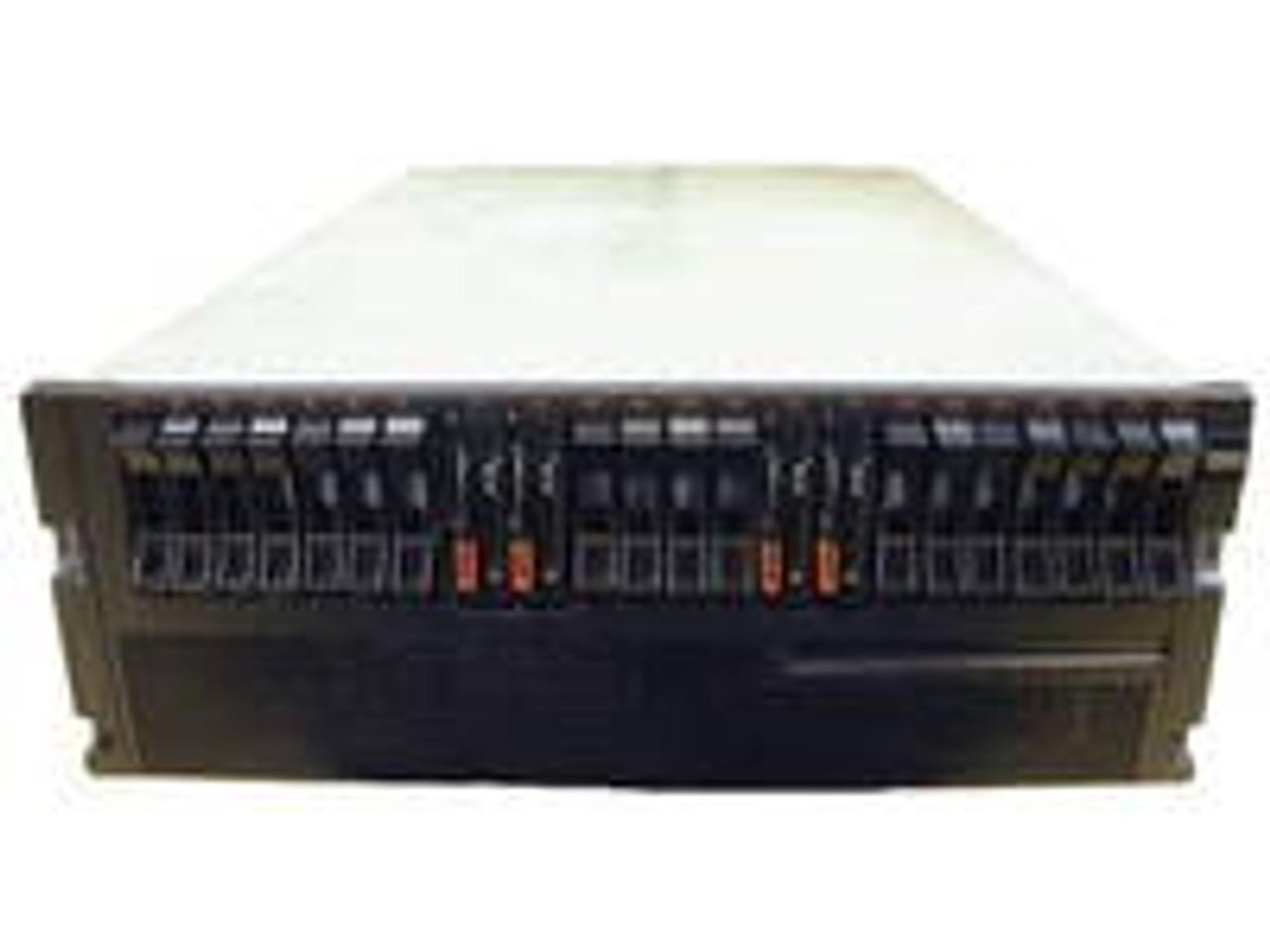

Enhance your server infrastructure with the IBM 5802 12X I/O Drawer PCIe SFF Disk, identified by part number 44V6774. This compact 4U rack-mountable expansion unit delivers versatile I/O and storage options through 10 PCIe 8x adapter slots and 18 SAS small form factor hot-swap bays, enabling storage capacities of up to 5.4 TB. Optimized for IBM Power6 and Power7 systems supporting IBM i, AIX, or Linux operating systems, the 5802 drawer facilitates efficient scaling of data handling capabilities. At DataTech Computer, we ensure each component undergoes comprehensive testing to meet high standards, supported by a 60-day warranty for dependable performance in demanding environments.
Key Specifications
- Feature Code: 5802
- Part Numbers: 44V6774, 45D5221
- CCIN: 5802
- Form Factor: 4U, 19-inch rack-mountable
- PCIe Slots: 10 x PCIe 8x (blind-swap, hot-plug capable)
- Disk Bays: 18 x SAS SFF hot-swap (maximum 5.4 TB capacity)
- Connectivity Cables: 12X DDR types (#1861 to #1865), SAS (#3688)
Core Features
- Versatile PCIe slots allow for seamless adapter integration with minimal downtime, thanks to blind-swap technology.
- Flexible SAS bays support HDD or SSD configurations, adjustable via a mode switch into one group of 18, two groups of 9, or four groups of 4-5 bays to match specific operational needs.
- High-speed data transfer enabled by 12X DDR cabling and dedicated SAS connections.
- Broad OS compatibility, including IBM i from V5R4, AIX from 5.3, and Linux variants like RHEL 6 or SLES 11 onward.
- Built-in redundancy with dual power supplies and cooling mechanisms to maintain system stability.
System Compatibility
The IBM 5802 integrates effectively with a range of Power Systems models, requiring a GX++ slot and compatible adapters such as EJ04 for Power7 or 5609/5616 for Power6. Supported models include:
- 8202-E4B, 8202-E4C, 8202-E4D
- 8205-E6B, 8205-E6C, 8205-E6D
- 8231-E2C, 8231-E2D
- 8233-E8B
- 8408-E8D
- 9109-RMD
- 9117-MMB, 9117-MMC, 9117-MMD
- 9179-MHB, 9179-MHC, 9179-MHD
Up to two 5802 drawers can connect per 12X loop, with support for mixing with 5877 but not older units like 5796 or 7314-G30. Note that this drawer is not suitable for Power8 or later systems; consider alternatives like the EXP24S (5887) for those.
Operating System Considerations
For AIX or Linux setups, a single 5901/5903 SAS adapter in slot 1 suffices. IBM i configurations require two such adapters starting from slot 2 to balance distribution. Ensure proper adapter placement based on your platform for optimal functionality.
Setup Guidelines
Installation involves connecting via at least two 12X DDR data cables, two AC power cords, and two SPCN cables for redundancy. Set the mode switch according to bay grouping preferences and position SAS adapters appropriately. This process is straightforward for system administrators familiar with Power Systems.
Common Questions
- What storage options does it support? Up to 5.4 TB using compatible HDDs or SSDs in the 18 SFF bays.
- Is it suitable for newer Power systems? No, it's tailored for Power6 and Power7; upgrade to EXP24S for Power8+.
- Are adapters included? No, they are available separately to fit your exact requirements.
