Product Description

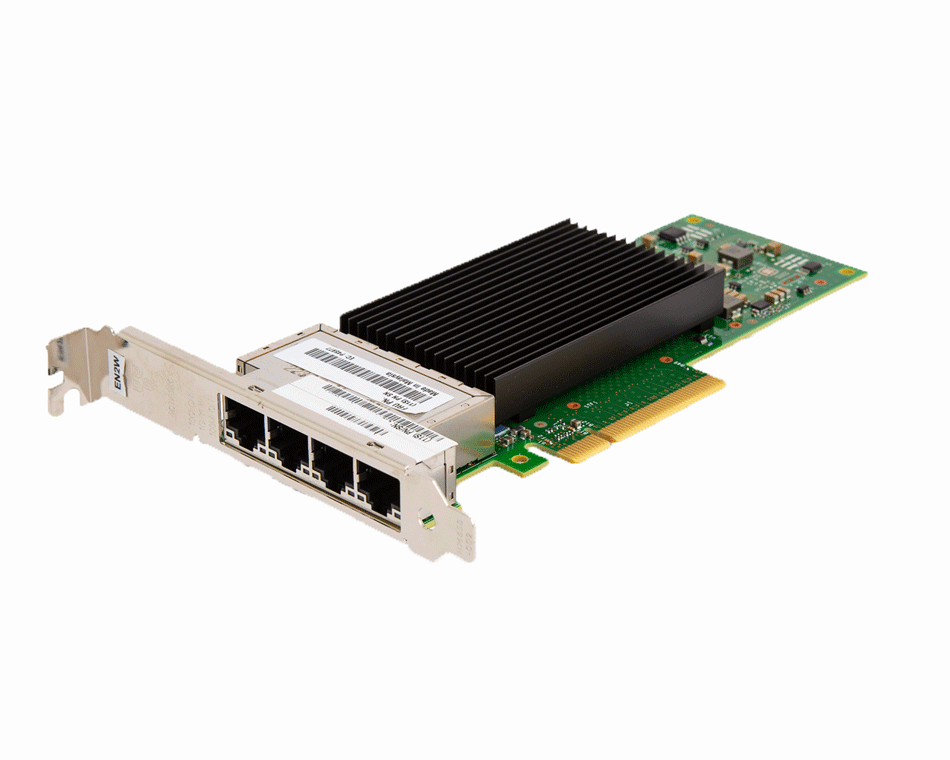

IBM EN2Z PCIe 4-Port 1GbE Adapter
Expand your IBM Power Systems networking options with the EN2Z adapter, offering dependable multi-port Gigabit Ethernet connectivity over standard copper cabling. This PCIe2 (Gen2) x4 card includes four RJ45 ports supporting 1 GbE speeds with fallback to 100 Mbps or 10 Mbps, delivering straightforward, cost-effective network expansion using familiar twisted-pair infrastructure.
Key Features
- Four RJ45 ports for 1 GbE Base-T connectivity
- PCIe Gen2 x4 interface for reliable performance in compatible slots
- Auto-negotiation for speeds of 1000/100/10 Mbps
- Full-height form factor suitable for standard server PCIe slots
- Conforms to IEEE 802.3ab 1000BASE-T standards
- Supports AIX Network Installation Management (NIM) boot capability
- Low-power, efficient design for multi-port use
The IBM EN2Z adapter provides seamless compatibility with your Power Systems environment, enabling solid Ethernet performance for general networking needs. Its multiple RJ45 ports facilitate easy cabling and expansion, while maintaining backward compatibility for mixed-speed networks.
Specifications
| Category | Details |
|---|---|
| Interface | PCIe2 x4 |
| Ports | 4 x RJ45 |
| Speeds | 1/0.1/0.01 GbE Base-T |
| Protocols | Ethernet NIC |
| Form Factor | Full-height |
| Part Number | 03HD095 |
| CCIN | 5775 |
| Voltage | Standard PCIe operation (refer to system docs for exact) |
Compatibility This adapter is compatible with select IBM Power Systems supporting appropriate PCIe slots, including:
- Power S1024 (9105-42A)
- Power S1014 (9105-41B)
- Power S1022 (9105-22A)
- Power E1080 (9080-HEU)
- Power L1122 (9856-22H)
- Power S1124 (9824-42A)
- And other Power10 and Power11 models with compatible PCIe infrastructure.
At Data Tech Computer, we stand behind this product with a 60-day warranty for added confidence. Excellent for basic, reliable Gigabit Ethernet expansion in your IBM Power setup.
