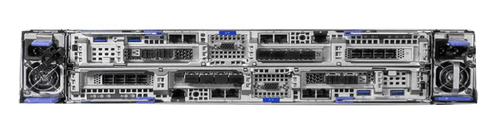

    IBM FlashSystem 7300 NVMe Control Enclosure

    The IBM FlashSystem 7300 delivers high-performance NVMe flash storage with advanced data management capabilities. This 2U rack-mounted system supports scalable capacity and efficient operations through IBM Storage Virtualize software. It features redundant components for reliability, including hot-swappable node canisters and power supplies. With options for inline compression and various drive types, it optimizes storage efficiency and speed.

    Key Features

    • Dual node canisters with up to 40 processing cores for robust performance.
    • Support for up to 24 NVMe 2.5-inch drives, including IBM FlashCore Modules and industry-standard options.
    • Connectivity options: 32 Gbps Fibre Channel, 10/25/100 Gbps Ethernet for iSCSI, and NVMe-oF over FC.
    • Data reduction technologies like compression and deduplication to maximize capacity.
    • Expansion capabilities with up to 12 SFF or LFF enclosures for added storage tiers.
    • Advanced virtualization for seamless integration and management.

    Technical Specifications

    • Form Factor: 2U rack-mounted enclosure.
    • Processors: Two 10-core processors per node canister.
    • Cache: From 256 GB to 1.5 TB total.
    • Interfaces: Fibre Channel Protocol (FCP), iSCSI, NVMe-oF on FC; RoCE and iWARP support.
    • Power: Integrated AC supplies with battery backup for data protection.
    • Maximum Capacity: Up to 1380 TB protected with compression; 368 TB raw with standard drives.

    Available Configurations

    Use the following feature codes for drive options:



    Feature Code Description      Capacity
    ADSE IBM FlashCore Module      4.8 TB
    ADSF IBM FlashCore Module      9.6 TB
    ADSG IBM FlashCore Module      19.2 TB
    ADSH IBM FlashCore Module      38.4 TB
    ADT2 Industry-Standard NVMe Drive      1.92 TB
    ADT3 Industry-Standard NVMe Drive      3.84 TB
    ADT4 Industry-Standard NVMe Drive      7.68 TB
    ADT5 Industry-Standard NVMe Drive      15.36 TB
    ADT6 Industry-Standard NVMe Drive      30.72 TB


    Storage Class Memory options: Up to twelve 1.6 TB NVMe drives.

    Models available: 4657-924 (SFF NVMe Control Enclosure) and 4657-U7D (Utility-based with fixed Capacity on Demand).

    Compatibility

    • Host Interfaces: Supports FCP with point-to-point, arbitrated loop, and switched fabric topologies; iSCSI and NVMe-oF on FC.
    • Expansion Enclosures: Compatible with IBM FlashSystem 7000 series SFF (e.g., 4657-24G, 4657-92G) and LFF High Density models.
    • Multipathing: Active-active across all interfaces for enhanced availability.
    • Drive Mixing: Allows intermixed drives of the same form factor and connector type within enclosures.
    • Virtualization: Integrates with VMware, Microsoft Hyper-V, Red Hat OpenShift, and Kubernetes environments.

    This system comes with a 60-day warranty from Data Tech Computer.
