Product Description

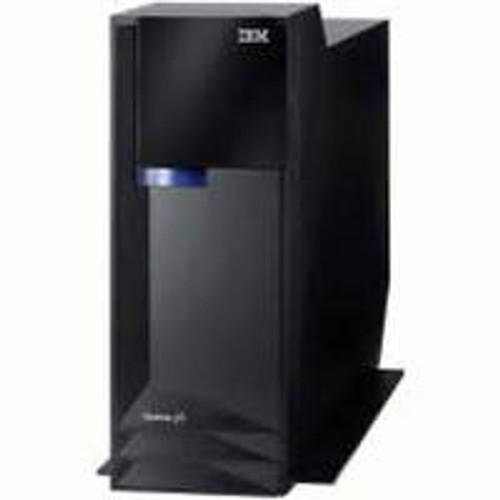

IBM iSeries Model 9406-525-0909 1.9 GHz 3800-7100 CPW P10
Power up your legacy IBM mid-range environment with the IBM iSeries Model 9406-525 featuring the 0909 processor, a high-performance Power5+ server optimized for demanding interactive and batch workloads. This configuration delivers substantial capacity with a 3800-7100 CPW rating in the P10 software tier on a 1.9 GHz POWER5+ single-core processor, making it excellent for intensive business applications, large databases, and robust OS/400 or IBM i operations. It includes a complete hardware package for rapid deployment, featuring memory, high-speed SCSI DASD with RAID, dual-port Ethernet, DVD ROM, tape drive, Twinax support, base WAN/modem, and base IOP.
The Model 9406-525 with 0909 Processor provides powerful single-processor throughput, efficiently supporting legacy AS/400 iSeries application suites. Configured with 4 GB DDR2 memory, 140 GB 15K RPM SCSI DASD (typically 4x 35.16 GB drives), RAID enablement, integrated 2-port 1 Gbps Ethernet, DVD ROM drive, 30 GB 1/4-inch cartridge tape, base 2-line WAN with modem, and base IOP. The system unit offers 8 disk slots (minimum 2 drives required) for storage expansion.
This fully equipped system includes entitlements for one processor and one operating system, presenting a high-capacity, reliable solution for organizations maintaining demanding IBM iSeries infrastructures with proven Power5+ architecture.
Key Features
- Processor Performance: 0909 1-core POWER5+ at 1.9 GHz with 3800-7100 CPW (P10 tier).
- Memory Configuration: 4 GB DDR2 (expandable up to 32 GB per model limits).
- Storage Capacity: 140 GB 15K RPM SCSI DASD with RAID support (typically 4x 35.16 GB drives).
- Networking: Integrated 2-port 1 Gbps Ethernet.
- Media Drives: DVD ROM and 30 GB 1/4-inch cartridge tape.
- Connectivity: Twinax workstation support.
- Communication: Base 2-line WAN with modem.
- Expandability: 8 disk slots in system unit (minimum 2 drives required).
- Entitlements: One processor, one OS.
- Complete Configuration: Ready-to-deploy with all specified components.
Specifications
| Feature | Details |
|---|---|
| Model | 9406-525 |
| Processor / Feature Code | 0909 (P10) |
| Processor Type | POWER5+ 1-Core |
| Frequency | 1.9 GHz |
| CPW Rating | 3800-7100 CPW |
| Memory | 4 GB DDR2 (4475 4GB DDR2 Memory) |
| Storage | 140 GB 15K RPM SCSI DASD (4326 35.16GB 15K RPM SCSI Disk Unit QTY=4) |
| RAID Support | Yes (5709/5727 RAID Enablement Card) |
| Ethernet | 2-port 1 Gbps (5706 Integrated 2-Port 1Gbps Ethernet) |
| Twinax | Supported (4746 Twinax) |
| Media Drives | DVD ROM (2640), 30 GB 1/4In Cartridge Tape (5753) |
| Communication | Base 2-Line WAN w/modem (9793), Base IOP (9844) |
| Disk Slots | 8 (minimum 2 drives) |
| Entitlements | 1 Processor, 1 OS |
| Operating System | IBM i / OS/400 entitlement included |
| Warranty | 60 days |
Compatibility
The IBM iSeries Model 9406-525 with 0909 Processor is compatible with IBM i and OS/400 operating system environments, supporting legacy IBM iSeries applications. It integrates with standard iSeries peripherals, SCSI storage, Twinax terminals, Ethernet networks, and allows expansion via compatible DDR2 memory, SCSI DASD, and adapters consistent with POWER5+ 520 architecture. Well-suited for traditional mid-range to high-demand business software and workloads on IBM platforms.
Configuration
IBM iSeries Model 9406-525-0909 1.9 GHz 3800-7100 CPW P10
- 140GB 15K RPM SCSI DASD
- 4GB Memory
- 2 Port 1Gbps Ethernet
- DVD ROM
- RAID
- 30GB 1/4In Cartridge Tape
- 10 Users
- 3800-7100 CPW
IBM 9406 525 Server IBM iSeries Processor (#7790, 7791, or 7792): 3800-7100 CPW, 1.9 GHz, Power5+ 1-2Core Processor SW Tier: P10 iSeries Memory: 1 GB to 32 GB iSeries Disk Drives: Minimum of 2 Disc Drives with 8 slots in system unit. Configuration includes: 2640 DVD-ROM, 4326 35.16GB 15K RPM SCSI Disk Unit (QTY=4), 4475 4GB DDR2 Memory, 5706 Integraded 2-Port 1Gbps Ethernet, 5709/5727 RAID Enablememtn Card, 5753 30GB 1/4in Cartridge Tape, 9793 BASE 2-Line WAN w/modem, 9844 BASE IOP. one processor entitlement, one operating system entitlement, and 10 users.
