    • Expansions for FlashSystem 7300

    IBM FlashSystem 7300 expansion enclosures

    The IBM FlashSystem 7300 expansion enclosures provide scalable capacity for the 7300 control enclosure, supporting a mix of high-performance flash, enterprise disk, and high-capacity nearline drives. Available in SFF (Small Form Factor) and LFF (Large Form Factor) configurations, including a high-density option, these 2U or 5U rack-mounted units connect via SAS for reliable tiered storage. They enable DRAID 1 or DRAID 6 formatting for enhanced data protection and efficiency.

    Key Features

    • Multiple enclosure support per control enclosure for flexible scaling.
    • Support for SAS-attached drives including flash SSDs, 10,000 rpm enterprise disks, and 7,200 rpm nearline HDDs.
    • High-density Model 92G maximizes drive count in limited rack space.
    • Intermixing of drive types (same form factor) within enclosures.
    • DRAID formatting for improved rebuild times and reliability.
    • Expansion up to thousands of drives for petabyte-scale capacity.

    Technical Specifications

    • Form Factor: 2U or 5U rack-mounted (model-dependent).
    • Drive Support:
      • LFF (Model 12G): Up to 12 x 3.5-inch drives.
      • SFF (Model 24G): Up to 24 x 2.5-inch drives.
      • HD LFF (Model 92G): Up to 92 x 2.5-inch drives in 3.5-inch carriers.
    • Supported Drive Capacities:
      • Nearline 7,200 rpm (LFF/HD): 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB, 18 TB, 20 TB.
      • Enterprise 10,000 rpm: 1.2 TB, 1.8 TB, 2.4 TB.
      • Flash SSD: 800 GB (3DWPD), 1.92 TB, 3.2 TB, 3.84 TB, 7.68 TB, 15.36 TB, 30.72 TB.
    • Maximum Drives:
      • Model 12G: 144 drives (12 enclosures x 12 drives).
      • Model 24G: 288 drives (12 enclosures x 24 drives).
      • Model 92G: 368 drives (4 enclosures x 92 drives).
    • Connectivity: SAS-based attachment to IBM FlashSystem 7300 control enclosure (requires SAS enclosure attachment adapter in control unit).
    • RAID: Formatted as DRAID 1 or DRAID 6 (DRAID 6 for most configurations).

    Available Configurations

    Models available:



    Model Description Drive Bays Max Drives per Enclosure Max Total Drives Example Use
    4657-12G FlashSystem 7000 LFF Expansion Enclosure 12 x 3.5-inch LFF 12 144 (12 enclosures) High-capacity nearline storage

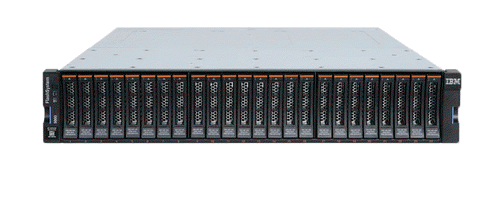

    4657-24G FlashSystem 7000 SFF Expansion Enclosure 24 x 2.5-inch SFF 24 288 (12 enclosures) Balanced performance and capacity
    4657-92G FlashSystem 7000 HD LFF Expansion Enclosure 92 x 2.5-inch in 3.5-inch carriers 92 368 (4 enclosures) Maximum density flash or hybrid tiers


    Drives of the same form factor and technology can be intermixed within an enclosure. Specific drive feature codes are configured at order time based on IBM options.

    Compatibility

    • Designed exclusively for attachment to IBM FlashSystem 7300 control enclosures (e.g., 4657-924 or 4657-U7D).
    • Supports intermixing of expansion models (12G, 24G, 92G) within the same system.
    • Requires SAS Enclosure Attachment adapter (feature code ADBA or equivalent) in the control enclosure.
    • Compatible with IBM Storage Virtualize software features for virtualization, tiering, and data reduction.
    • Integrates with environments supporting VMware, Microsoft Hyper-V, Red Hat OpenShift, Kubernetes, and other hypervisors/container platforms via the control enclosure.
    • Does not support intermixing with older machine type expansions (e.g., 2076 series).

    This system comes with a 60-day warranty from Data Tech Computer.
