Product Description

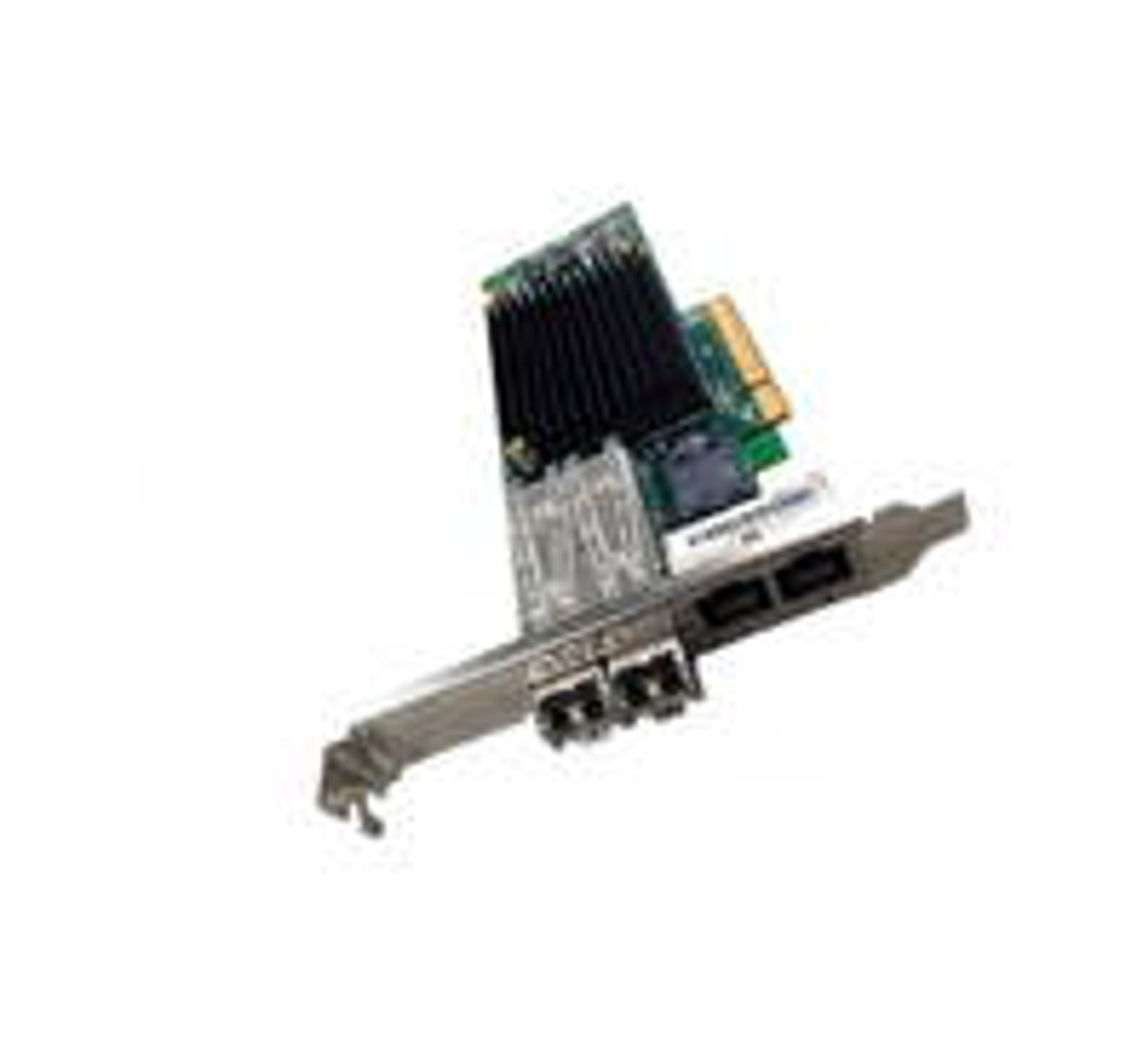

The IBM EN0U PCIe2 4-port (10Gb+1GbE) Copper SFP+RJ45 Adapter (Part Number: 00E2719) is a high-performance Ethernet adapter for IBM Power Systems. Featuring two 10Gb SFP+ copper ports and two 1Gb RJ45 ports in a PCIe2 x8 full-height form, this CCIN 2CC3 adapter supports NIC traffic for enterprise network connectivity.
High-Speed Ethernet Connectivity
- 4-Port Design: Two 10Gb SFP+ and two 1Gb RJ45 ports.
- 10Gb SFP+ Ports: Supports active copper twinax cables up to 5m.
- 1Gb RJ45 Ports: Uses CAT-5 UTP cables for 100m distances.
- PCIe2 x8 Interface: High-bandwidth for efficient data transfer.
- NIC Support: Supports high-speed network traffic.
- IEEE Standards: Supports 802.3ae, 802.3ab, 802.1p, 802.1Q.
- 60-Day Warranty: Ensures reliability and support.
- Part Number: 00E2719, for precise compatibility.
- CCIN: 2CC3, unique identifier for this adapter.
Technical Specifications
- Part Number: 00E2719
- Alternate Part Number: 00E2715 (FRU)
- Feature Code: EN0U
- CCIN: 2CC3
- Interface: PCIe2 x8
- Ports: 2x 10Gb SFP+ copper, 2x 1Gb RJ45
- Cables: Active copper twinax (EN01, EN02, EN03) for 10Gb; CAT-5 UTP for 1Gb
- Form Factor: Full-height, short-form PCIe adapter
- Supported Systems: 8202-E4D, 8205-E6D, 8231-E1D, 8231-E2D, 8286-41A, 8286-42A, 8408-E8D, 9080-MHE, 9080-MME, 9117-MMD, 9179-MHD, 9119-MHE, 9119-MME
System Compatibility
The IBM EN0U adapter (00E2719, CCIN 2CC3) fits full-height PCIe2 or PCIe3 x8 slots and supports specific operating systems to provide high-speed Ethernet connectivity for Power Systems networks.
- Supported Systems:
- Power7: 8202-E4D (Power 720), 8205-E6D (Power 740), 8231-E1D, 8231-E2D (Power 710, 730), 9117-MMD (Power 770), 9179-MHD (Power 780)
- Power8: 8286-41A (Power S814), 8286-42A (Power S824), 8408-E8D (Power E850), 9080-MHE, 9080-MME, 9119-MHE, 9119-MME (Power E870, E880)
- Operating System: IBM i V6R1 with RS610-10 OS or V7R1 (Power7), V7R2 or later (Power8); AIX 5.3, 6.1, or 7.1; Linux RHEL 6.0, SLES 11 SP1, or later; VIOS; PowerKVM.
- Slot Requirements: PCIe2 or PCIe3 x8 full-height slot.
- Restrictions:
- Requires active twinax cables for 10Gb SFP+ ports; transceivers not included.
- 1Gb RJ45 ports support 1Gb/100Mb networks; 10Mb not supported.
- Not compatible with PCIe1 slots or non-IBM platforms.
- Available only in refurbished condition.
