Product Description

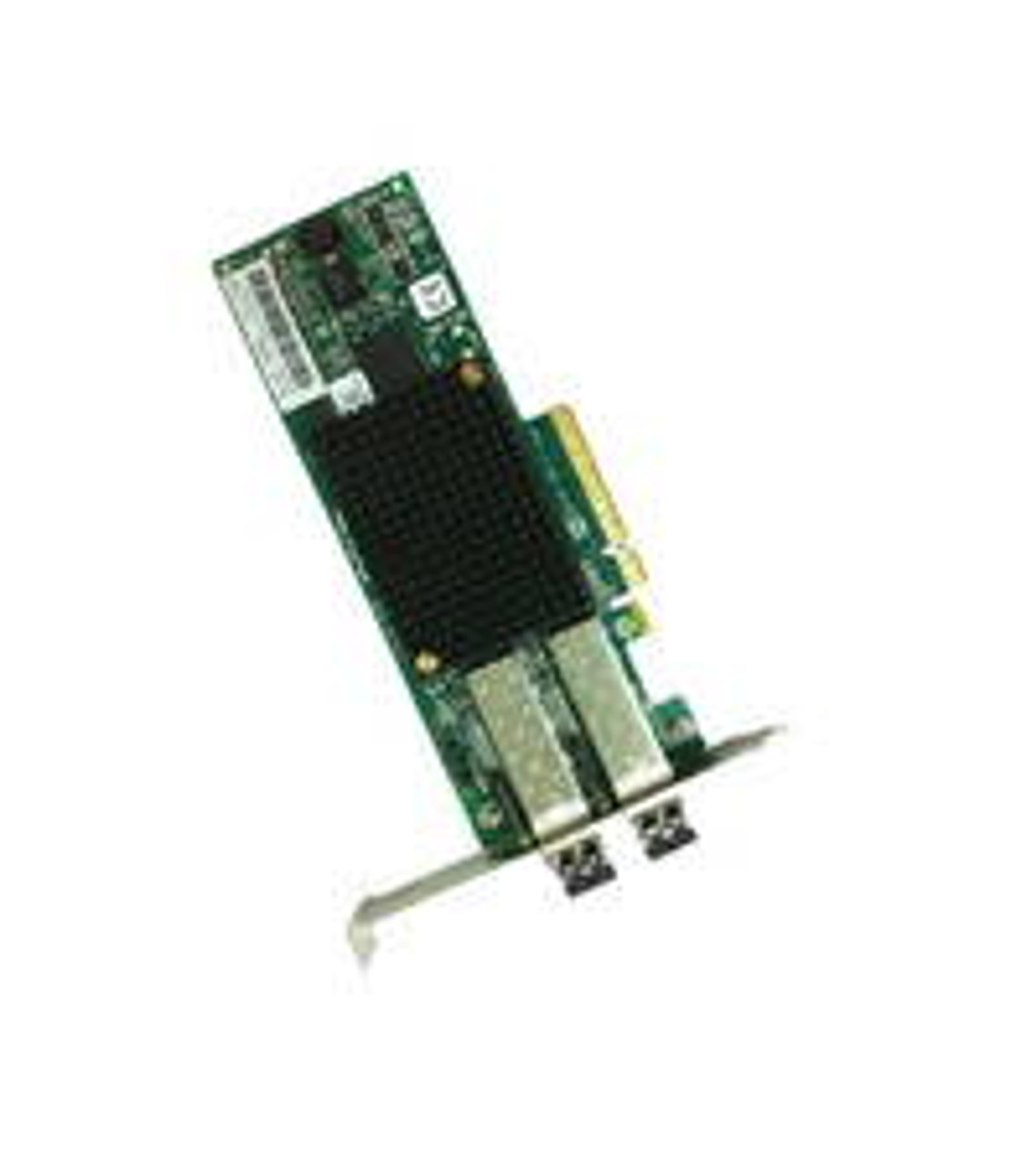

The IBM EN0A PCIe2 16Gb 2-port Fibre Channel Adapter (Part Number: 00E3496) is a high-performance adapter for IBM Power Systems. Featuring two 16Gb SFP+ ports with SR optics in a PCIe2 x8 full-height form, this CCIN 577F adapter supports high-speed Fibre Channel connectivity for enterprise networks.
High-Speed Fibre Channel Connectivity
- 2-Port Design: Two 16Gb SFP+ ports with SR optics included.
- 16Gb Speeds: Auto-negotiates at 4, 8, or 16 Gbps link speeds.
- PCIe2 x8 Interface: Upgradable to PCIe3 for high bandwidth.
- LC Connectors: Uses shortwave laser optics for reliable links.
- NPIV Support: Enables multiple initiators via VIOS.
- Distance Capability: Up to 100m at 16 Gbps, 10km with long-wave optics.
- 60-Day Warranty: Ensures reliability and support.
- Part Number: 00E3496, for precise compatibility.
- CCIN: 577F, unique identifier for this adapter.
Technical Specifications
- Part Number: 00E3496
- Alternate Part Numbers: 00E1731, 00E9283, 00ND478, 74Y2221
- Feature Code: EN0A
- CCIN: 577F
- Interface: PCIe2 x8 (Gen3-capable)
- Ports: 2x 16Gb SFP+ with SR optics
- Connectors: LC type with shortwave laser optics
- Form Factor: Full-height, short-form PCIe adapter
- Supported Systems: 8202-E4D, 8205-E6D, 8286-41A, 8286-42A, 8284-22A, 8408-44E, 8408-E8D, 8408-E8E, 9009-41A, 9009-42A, 9009-22A, 9109-RMD, 9117-MMC, 9117-MMD, 9119-MHE, 9119-MME, 9179-MHC, 9179-MHD
System Compatibility
The IBM EN0A adapter (00E3496, CCIN 577F) requires PCIe2 or PCIe3 x8 full-height slots and specific operating systems for high-speed Fibre Channel operations in Power Systems.
- Supported Systems:
- Power7: 8202-E4D (Power 720), 8205-E6D (Power 740), 9117-MMC, 9117-MMD (Power 770), 9109-RMD, 9119-FHA, 9119-FHB (Power 795), 9179-MHC, 9179-MHD (Power 780)
- Power8: 8286-41A (Power S814), 8286-42A (Power S824), 8408-44E, 8408-E8D, 8408-E8E (Power E850), 9119-MHE, 9119-MME (Power E870, E880)
- Power9: 8284-22A (Power S922), 9009-41A (Power S914), 9009-42A (Power S924), 9009-22A (Power S922)
- Operating System: IBM i V6R1 with RS610-10 OS or V7R1 (Power7), V7R2 or later (Power8), V7R3 or later (Power9); AIX 5.3, 6.1, or 7.1; Linux RHEL 6.0, SLES 11 SP1, or later; VIOS; PowerKVM.
- Slot Requirements: PCIe2 or PCIe3 x8 full-height slot.
- Restrictions:
- Requires SR optics or long-wave optics with IBM Fibre Channel switches; transceivers included.
- Direct device attachment supported only at 16 Gbps; 4/8 Gbps require a switch.
- Not compatible with PCIe1 slots or non-IBM platforms.
- Available only in refurbished condition.
