Product Description

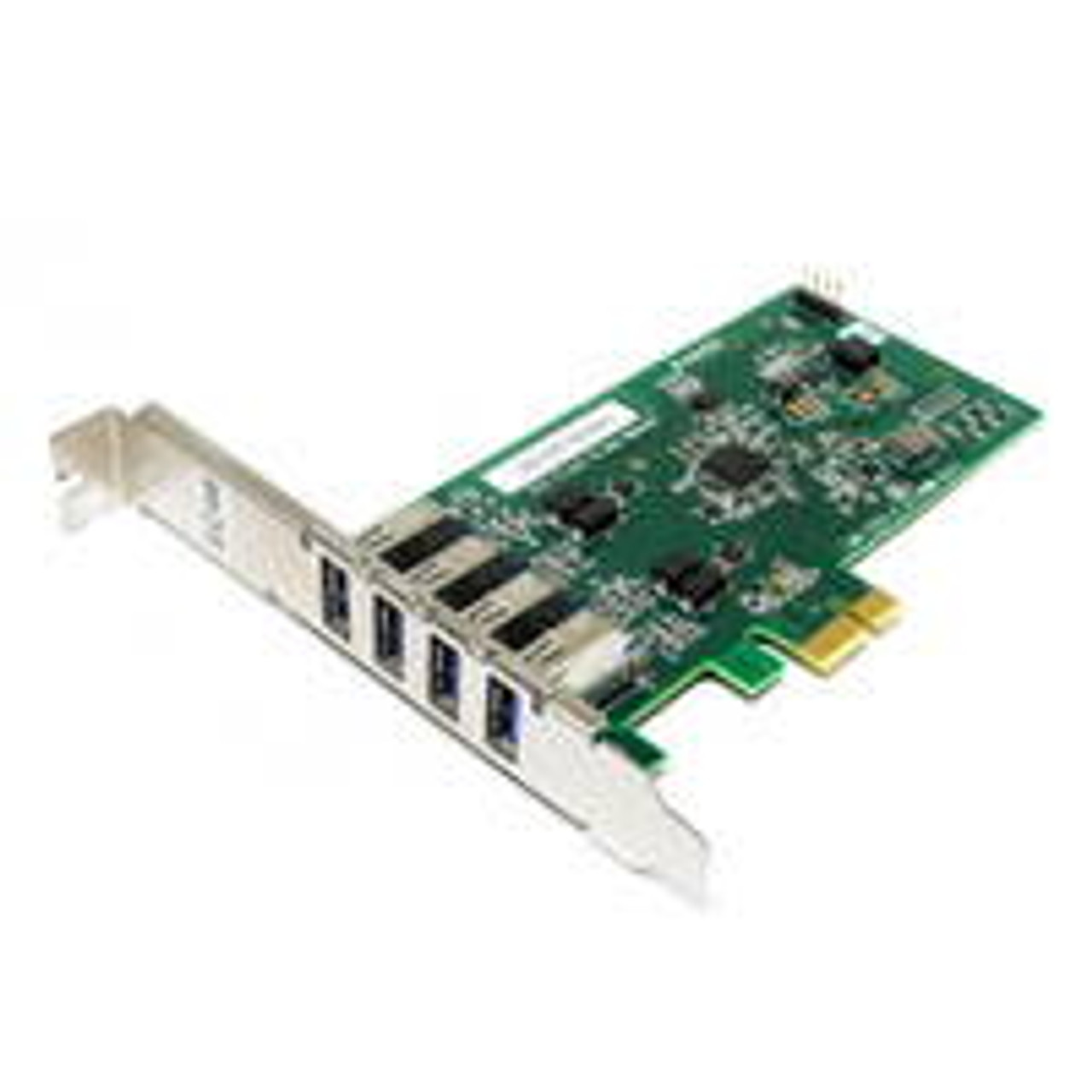

The IBM EC46 PCIe2 4-Port USB 3.0 Adapter (Part Number: 00E2932) is a high-performance adapter for IBM Power Systems. Featuring four USB 3.0 ports, this CCIN 58F9 adapter provides reliable connectivity for enterprise networks.
Technical Specifications
- Part Number: 00E2932
- Feature Code: EC46
- CCIN: 58F9
- Interface: PCIe2 x8
- Ports: 4x USB 3.0 (backward compatible with USB 2.0)
- Throughput: Up to 5Gb/s (USB 3.0), 480Mb/s (USB 2.0)
- Form Factor: Full-height
- Extension Cable: Optional FC 4256 per port
- Warranty: 60-day
- Supported Systems: 8286-41A, 8286-42A, 9008-22L, 9009-22A, 9009-41A, 9009-42A, 9223-22H, 9223-42H
System Compatibility
The EC46 adapter (00E2932, CCIN 58F9) requires PCIe2 x8 or x16 slots in Power8 or Power9 systems and specific operating systems for high-performance connectivity.
- Supported Systems:
- Power8: 8286-41A (S814), 8286-42A (S824)
- Power9: 9008-22L (L922), 9009-22A (S922), 9009-41A (S914), 9009-42A (S924), 9223-22H (H922), 9223-42H (H924)
- Operating System: IBM i V7R2 with TR4 or V7R3 for Power8; V7R3 with TR4 or V7R4 for Power9; AIX 7.1+; Linux RHEL 7.4+, SLES 12 SP3+; VIOS.
- Slot Requirements: PCIe2 x8 or x16.
- Restrictions:
- Supports USB 3.0/2.0 devices only.
- Incompatible with PCIe1, Power7 systems.
- Extension cable FC 4256 recommended.
- Refurbished condition only.
