Product Description

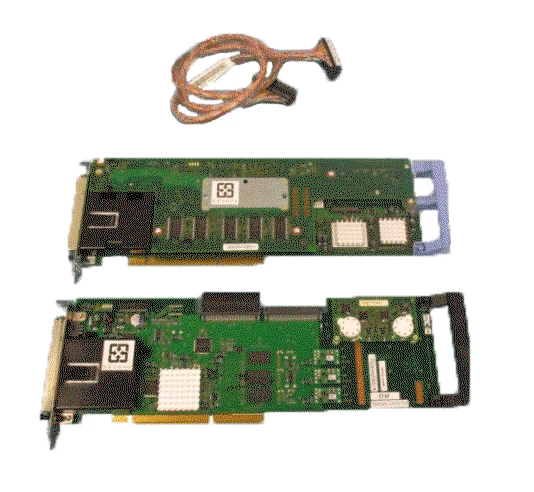

IBM 5591 2757 Controller w/574F Aux Write Cache
The IBM 5591 (feature code for 2757 with 574F auxiliary write cache) is a high-performance PCI-X RAID Disk Unit Controller equipped with additional auxiliary write cache for superior data protection and write performance. It supports RAID 0, 1, 5, and 10 configurations using Ultra320 SCSI interface, making it ideal for demanding legacy Power Systems and iSeries environments requiring robust storage reliability and speed.
This controller excels in providing data redundancy, enhanced I/O throughput, and reliable storage expansion for databases, ERP systems, file serving, and business-critical applications running on AIX or IBM i. Ideal for upgrading older systems or replacing failed RAID adapters while maintaining high availability and performance.
Key Features
- PCI-X RAID controller with auxiliary write cache
- Supports RAID levels 0, 1, 5, 10
- Ultra320 SCSI interface (LVD/SE, 320 MB/s)
- 1.5GB battery-backed write cache + auxiliary cache
- High-performance caching and RAID protection
- Supports multiple internal SCSI disk drives
- Designed for POWER5/POWER5+/POWER6 legacy systems
Specifications
- Feature Code: 5591 (2757 + 574F auxiliary write cache)
- Interface: PCI-X (64-bit, 133 MHz)
- RAID Levels: 0, 1, 5, 10
- SCSI Type: Ultra320 LVD/SE
- Cache: 1.5GB battery-backed write cache + auxiliary cache
- Compatibility: Select POWER5/POWER5+/POWER6 Power Systems and iSeries
- Form Factor: PCI-X card
Compatibility
This IBM 5591 (2757 with 574F auxiliary cache) PCI-X RAID Disk Unit Controller is compatible with select legacy IBM Power Systems and iSeries servers that support PCI-X RAID adapters with Ultra320 SCSI, including (but not limited to):
- iSeries 5xx, 6xx, 7xx, 8xx series (select models)
- Power 520 / 720 / 740 / 750 / 770 / 780 (POWER5/POWER5+/POWER6 models)
- pSeries 520 / 550 / 570 / 590 / 595 (POWER5/POWER6 models)
- Systems with available PCI-X slots and Ultra320 SCSI support
Verify exact system model, PCI-X slot availability, firmware level, cache battery requirements, and supported disk configurations before installation. Compatible with AIX and IBM i operating systems on supported hardware.
Warranty
60-day warranty included.
Provides a disk controller with auxiliary write cache to improve cache data redundancy. The #5591 includes a #2757 PCI-X RAID Disk Controller with a 757MB write cache and a secondary IOA with 1.5GB of auxiliary maximum compressed write cache. The #2757 and the secondary IOA each require one PCI-X slot and must be installed together in the same system unit or I/O unit/drawer/tower. The #2757 and the auxiliary write cache IOA are connected by a SCSI cable.
