Product Description

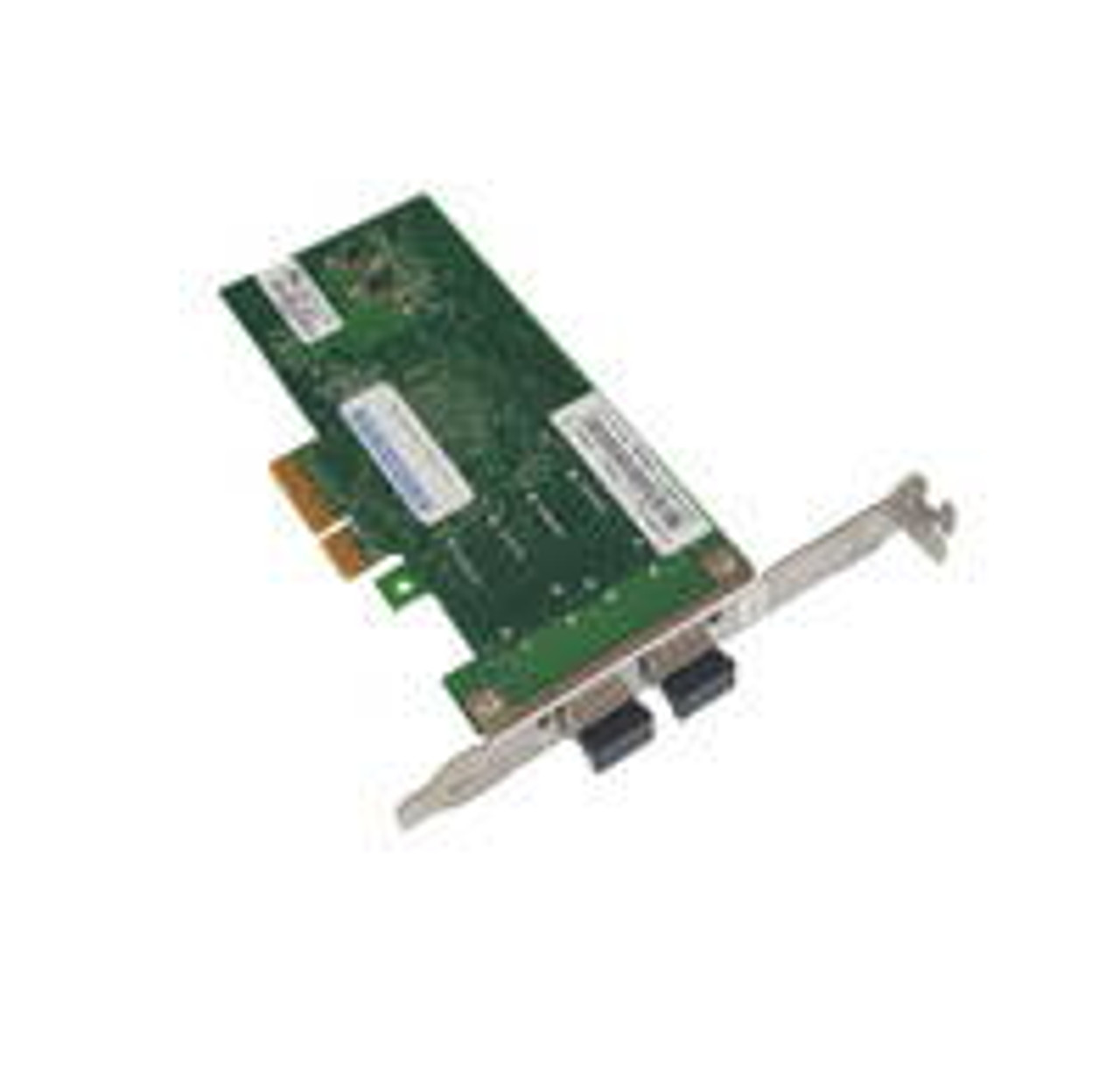

IBM 5768 2-Port Gigabit Ethernet-SX PCI Express Adapter
- 2 Port 1Gbps Ethernet
IBM 5768 2-Port Gigabit Ethernet-SX PCI Express (PCIe) Adapter provides two 1 Gbps (1000 Base-SX) full-duplex Ethernet LAN connections. The adapter interfaces to the system via a PCIe bus. It is PCIe x4 capable and conforms to the PCIe 1.0a standard. The adapter connects to a network using a 50/62.5 micron shortwave (850 nm) multimode optical cable that conforms to the IEEE 802.3z standard. The adapter supports distances of 260m for 62.5 micron Multi Mode Fiber (MMF) and 550m for 50.0 micron MMF. AIX Network Install Manager (NIM) boot capability is supported with this adapter.
